58.4" Ultra-Wide Stretched LCD Digital Signage Display
Buy $ 2,000 USD, auto-save $100.
Buy $ 5,000 USD, auto-save 5% OFF.
Buy $ 10,000 USD, auto-save 10%OFF.
Introduction
Please Follow These Guidelines
Proper handling and installation help protect the LCD panel and ensure safe operation. Please follow the guidelines below when unpacking, moving, installing, and connecting your display.
01 — Lift From the Sides
Always lift the display from both sides.
Do not press, push, or handle the LCD glass directly. Improper handling may damage the display panel.
02 — Never Stack Unpackaged Displays
Do not stack displays during installation or handling.
Keep displays properly supported and protected during installation to help prevent pressure or crushing damage to the LCD panel.
03 — Follow the Cable Connection Markings
Connect cables according to the labeled wiring sequence.
Make sure each cable is connected to the correct port before powering on the display.
Incorrect connections may cause short circuits or fire.
04 — Do Not Open the Display
Qualified personnel only.
The internal electronics should only be accessed by knowledgeable or qualified professionals.
Improper opening or servicing may cause product damage or injury.
Safe Handling Checklist
Before installation, please make sure:
☐ The display is lifted from both sides.
☐ The LCD glass is not pressed or touched during handling.
☐ Displays are not stacked during installation.
☐ All cables are connected according to the labeled sequence.
☐ The display is not opened by unauthorized personnel.
☐ The installation area provides adequate support for the display.
Need Installation Support?
If you have questions about installation, wiring, mounting, or product operation, please contact our support team before proceeding.
We're here to help you install your display safely and correctly.

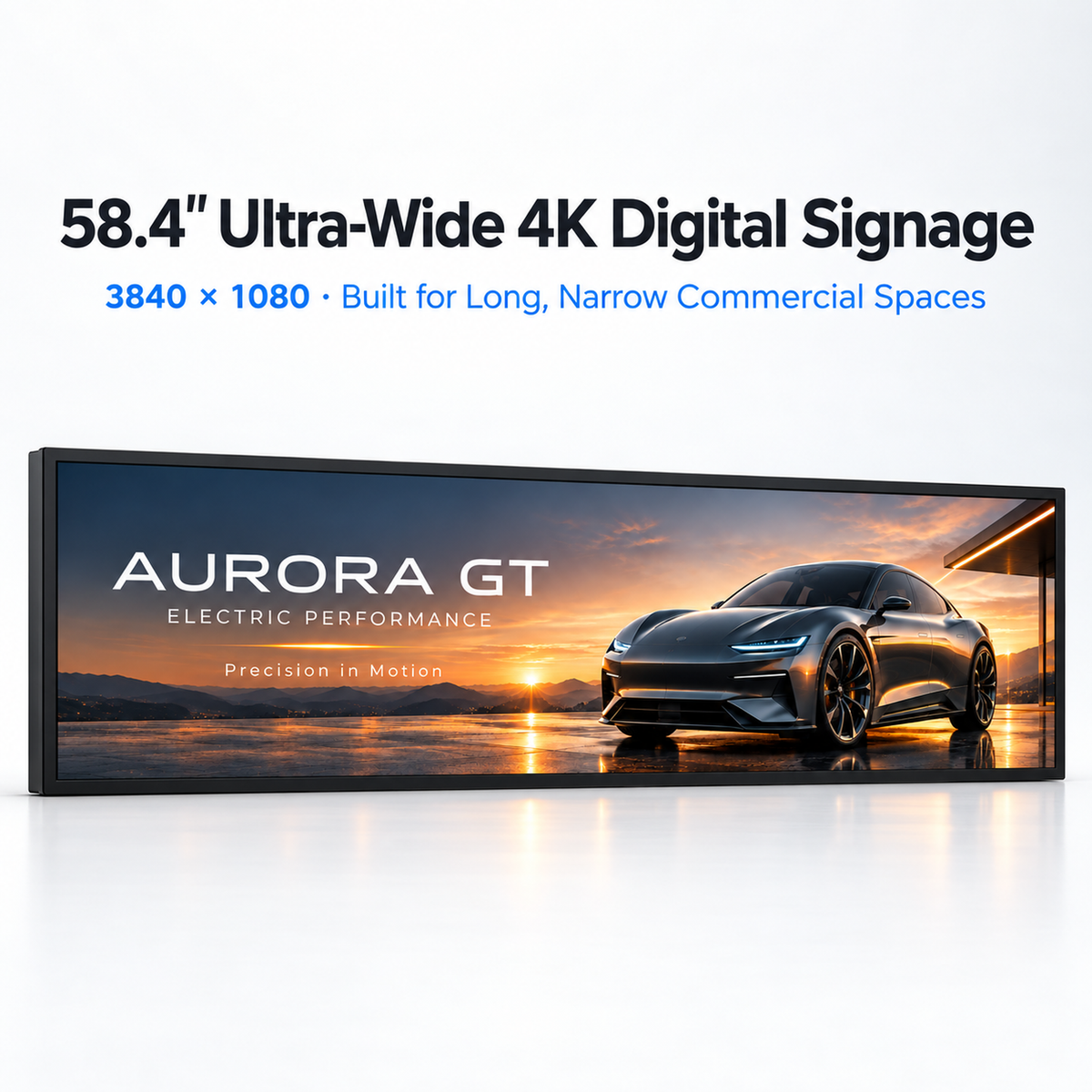

58.4-Inch Ultra-Wide Stretched LCD Display
Make Every Display Space More Impactful
Transform narrow spaces into engaging digital experiences with the
58.4-inch ultra-wide stretched LCD display.

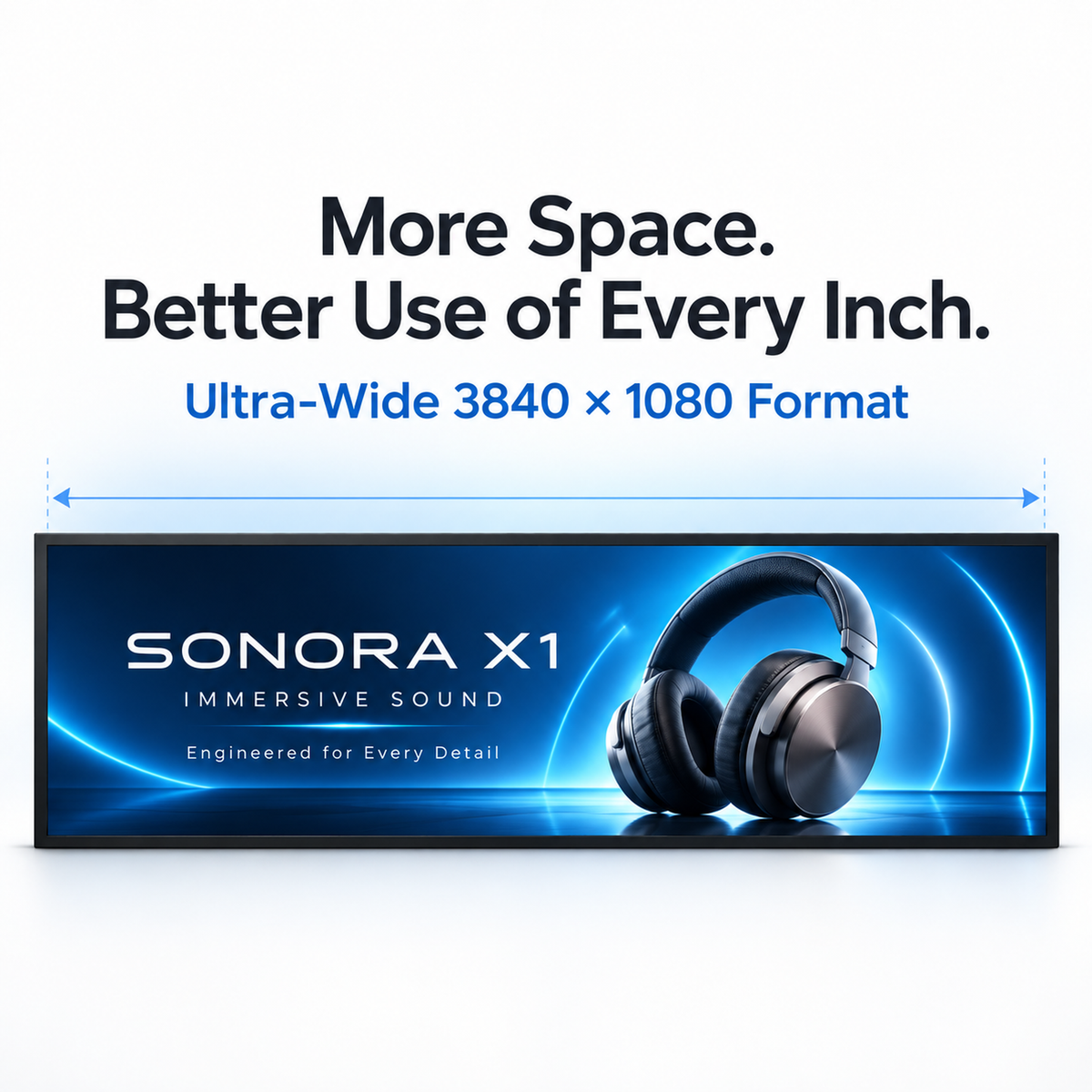

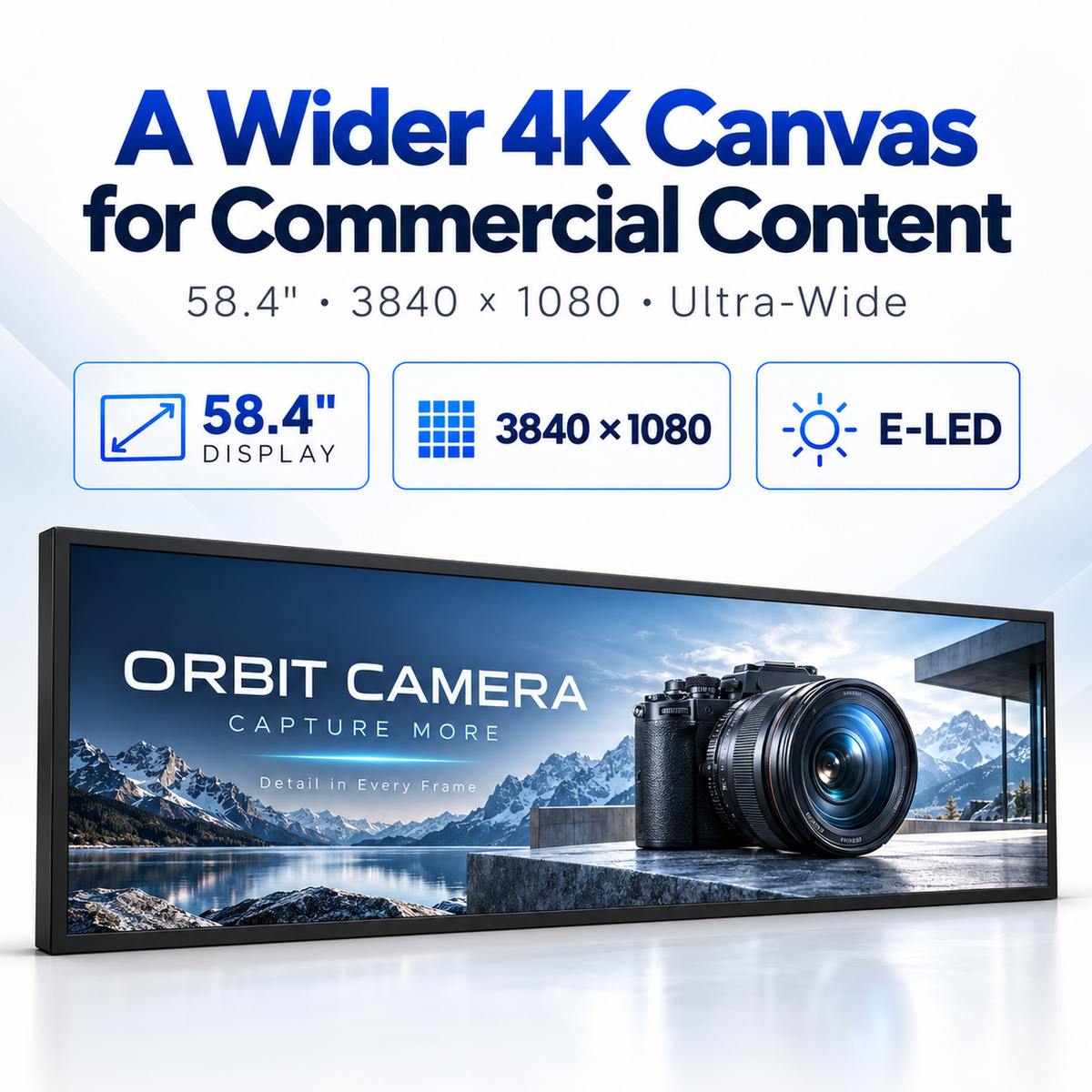

Featuring an impressive 3840 × 1080 resolution
and a distinctive panoramic screen format, this display delivers
clear visuals, dynamic advertising, and promotional content in a
sleek, space-efficient design.

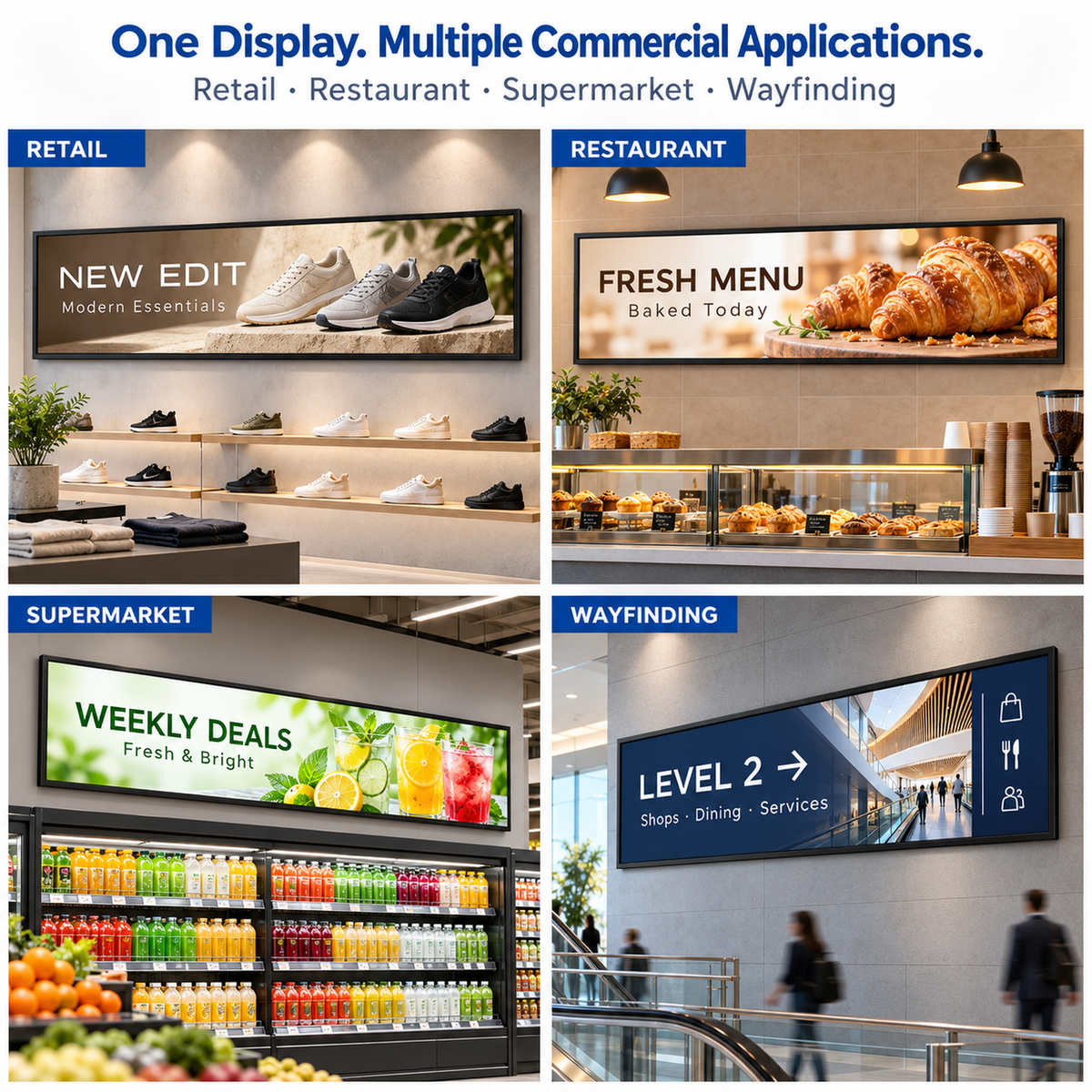

Designed for Creative Commercial Applications

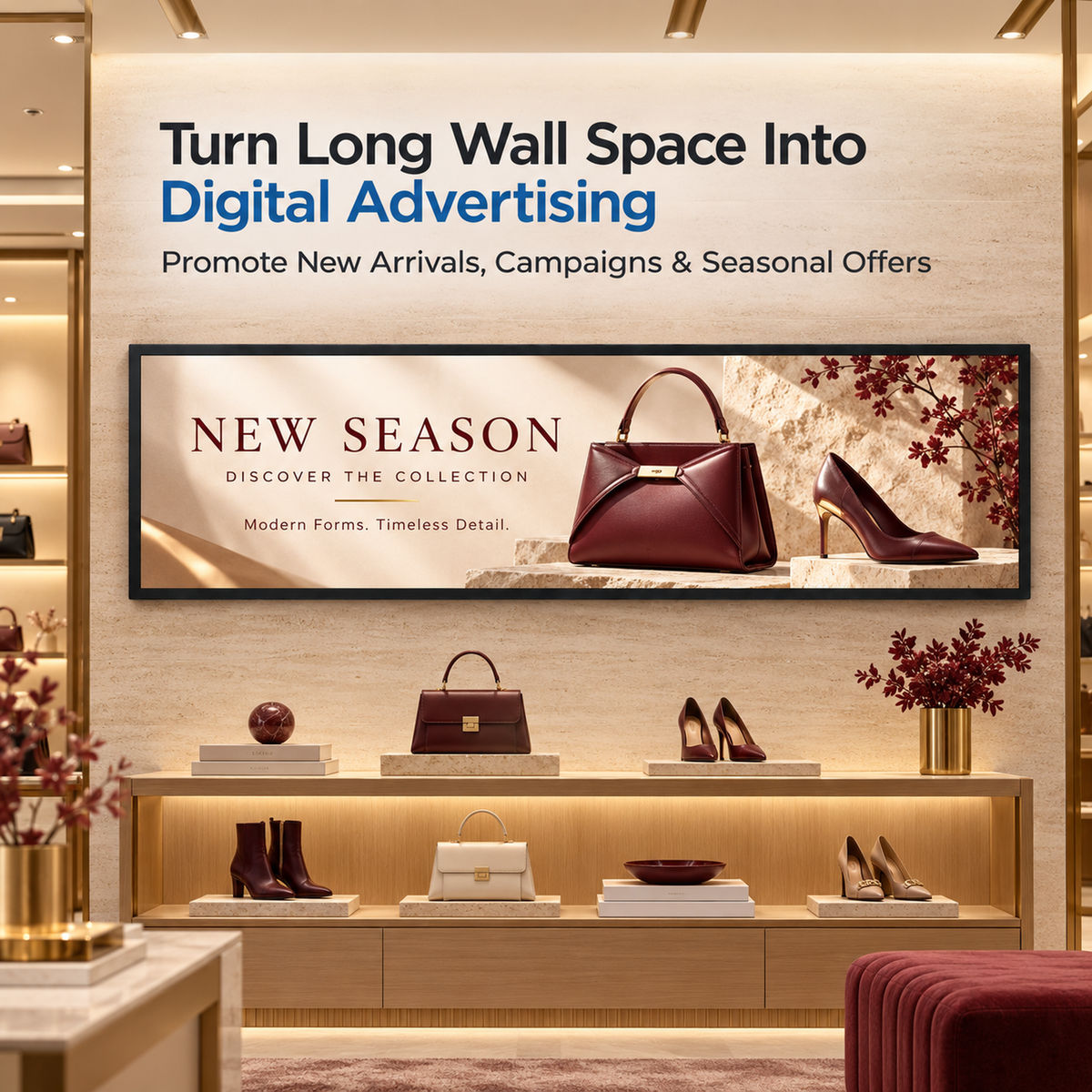

The ultra-wide screen format is ideal for
retail stores, shopping malls, restaurants, hotels,
exhibition halls, transportation facilities, and commercial spaces.
Whether displaying digital advertising, promotional messages,
menus, brand information, or wayfinding content, its elongated

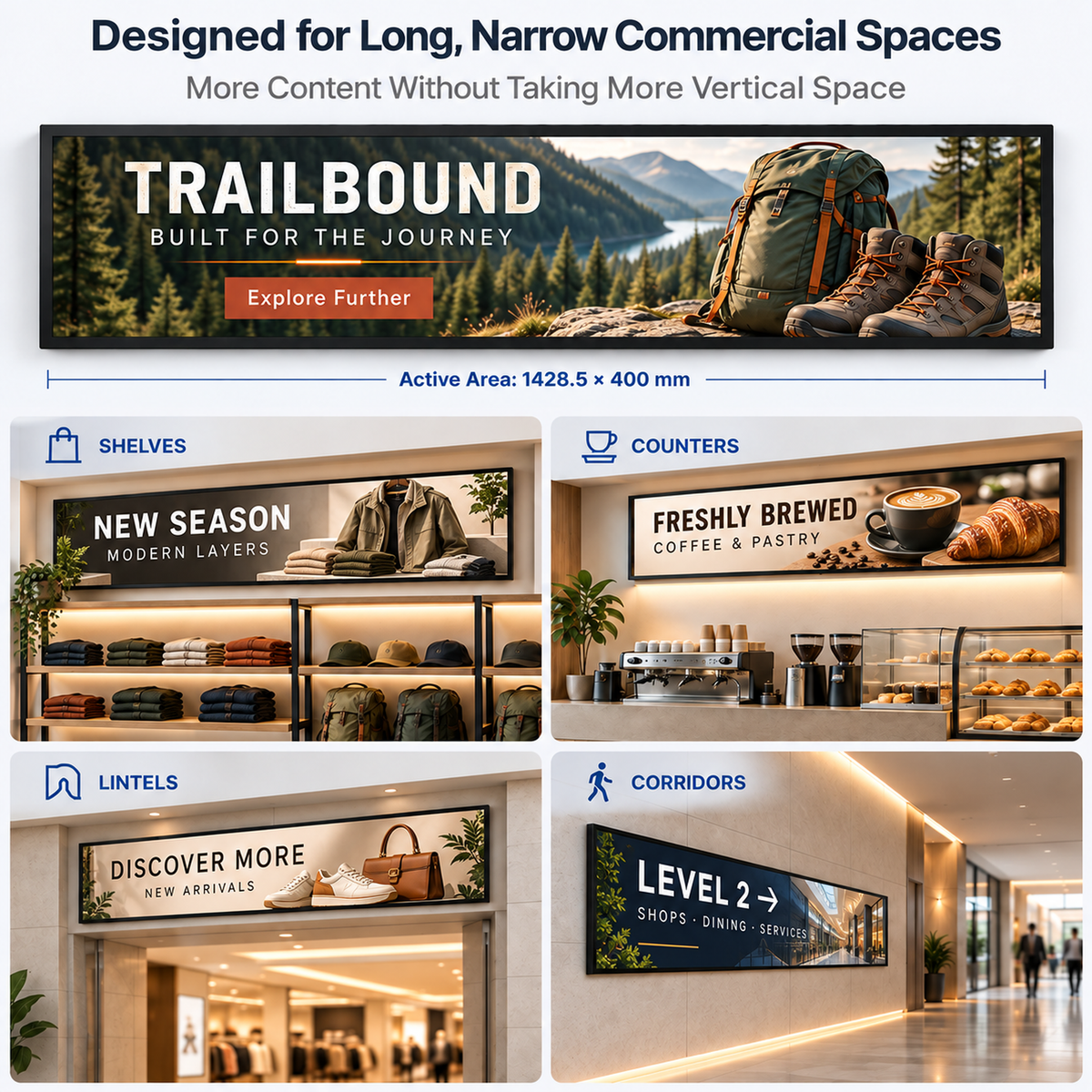

design helps integrate digital signage into spaces where
conventional displays may not fit.

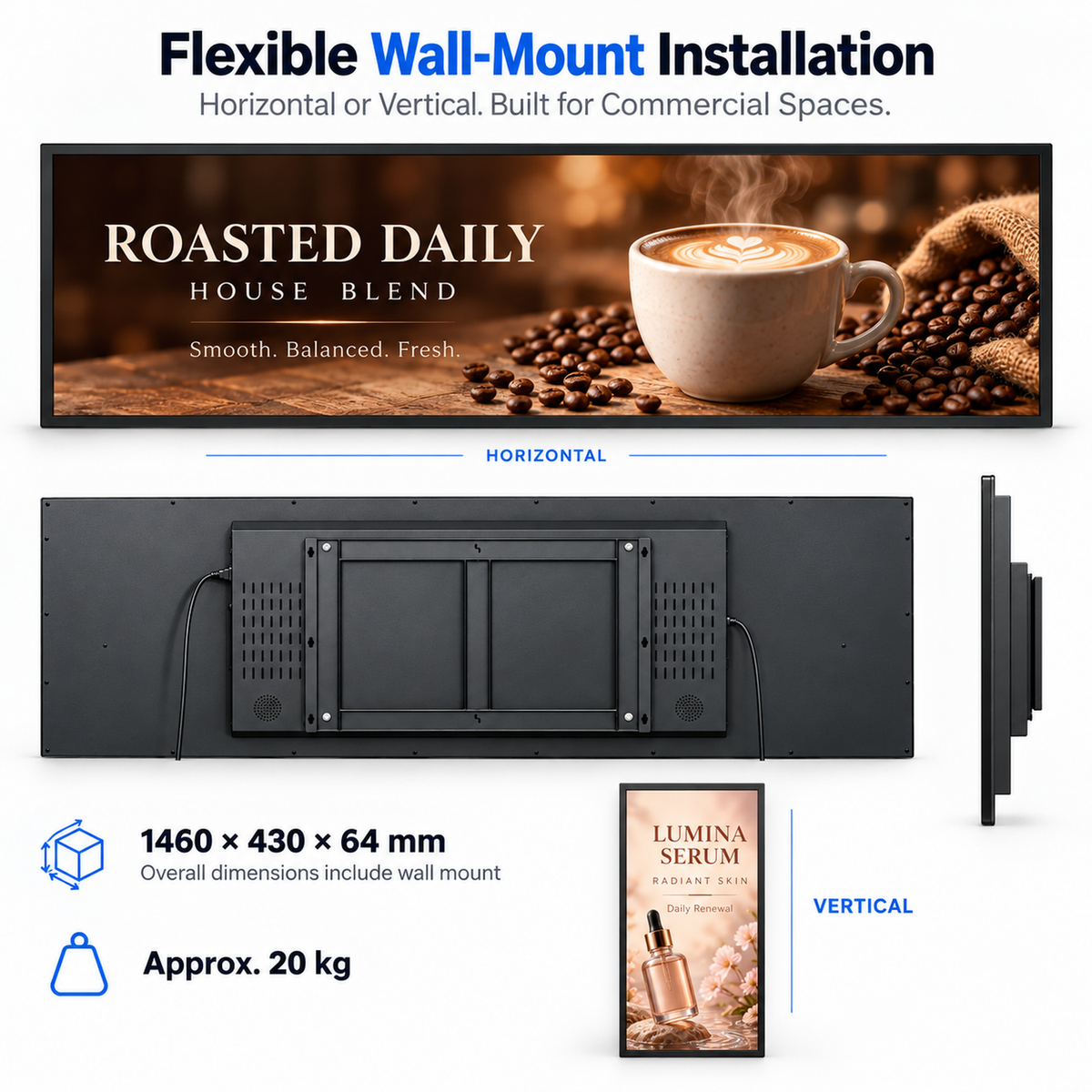

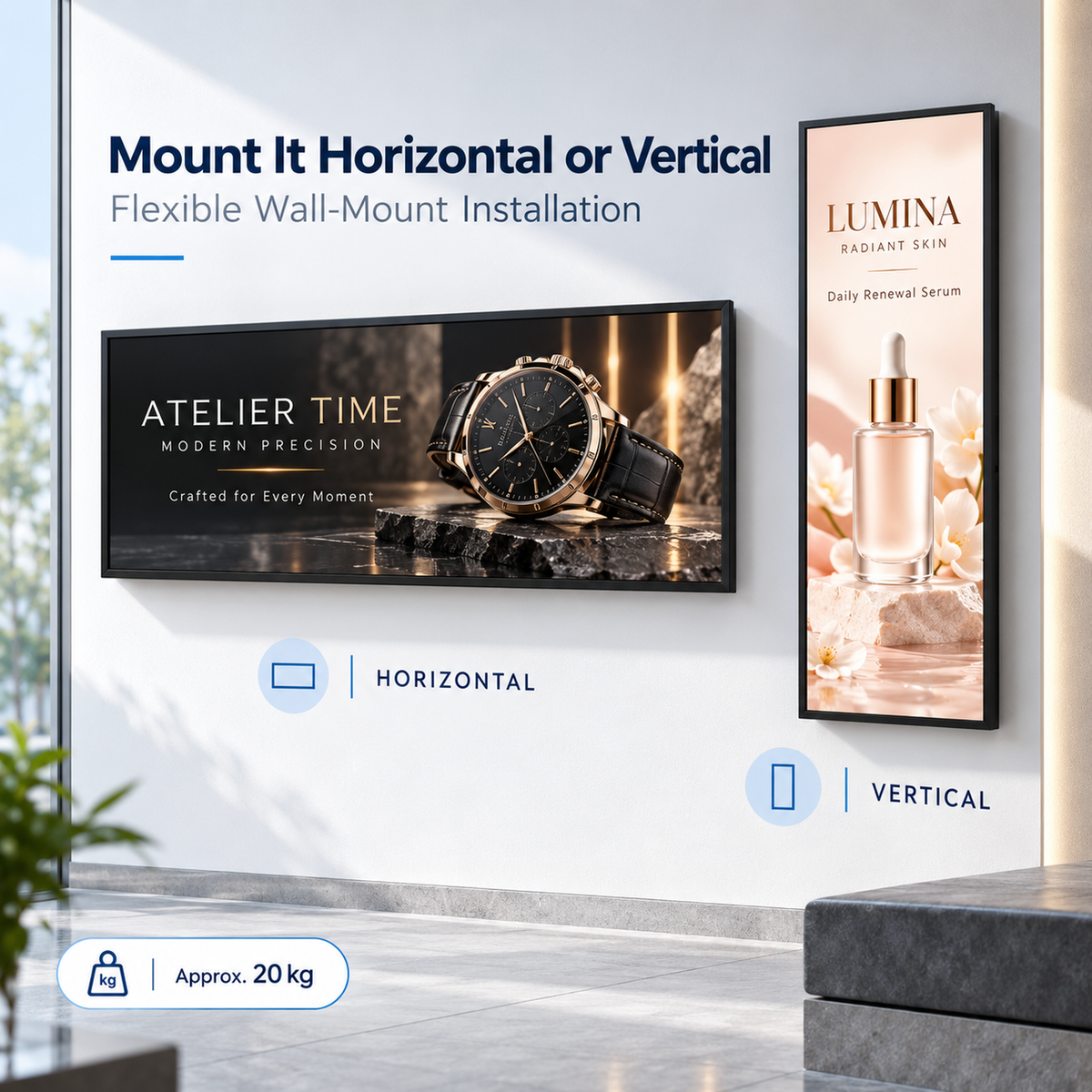

Supporting both horizontal and vertical wall-mounted
installation, it offers flexibility for different
commercial environments.

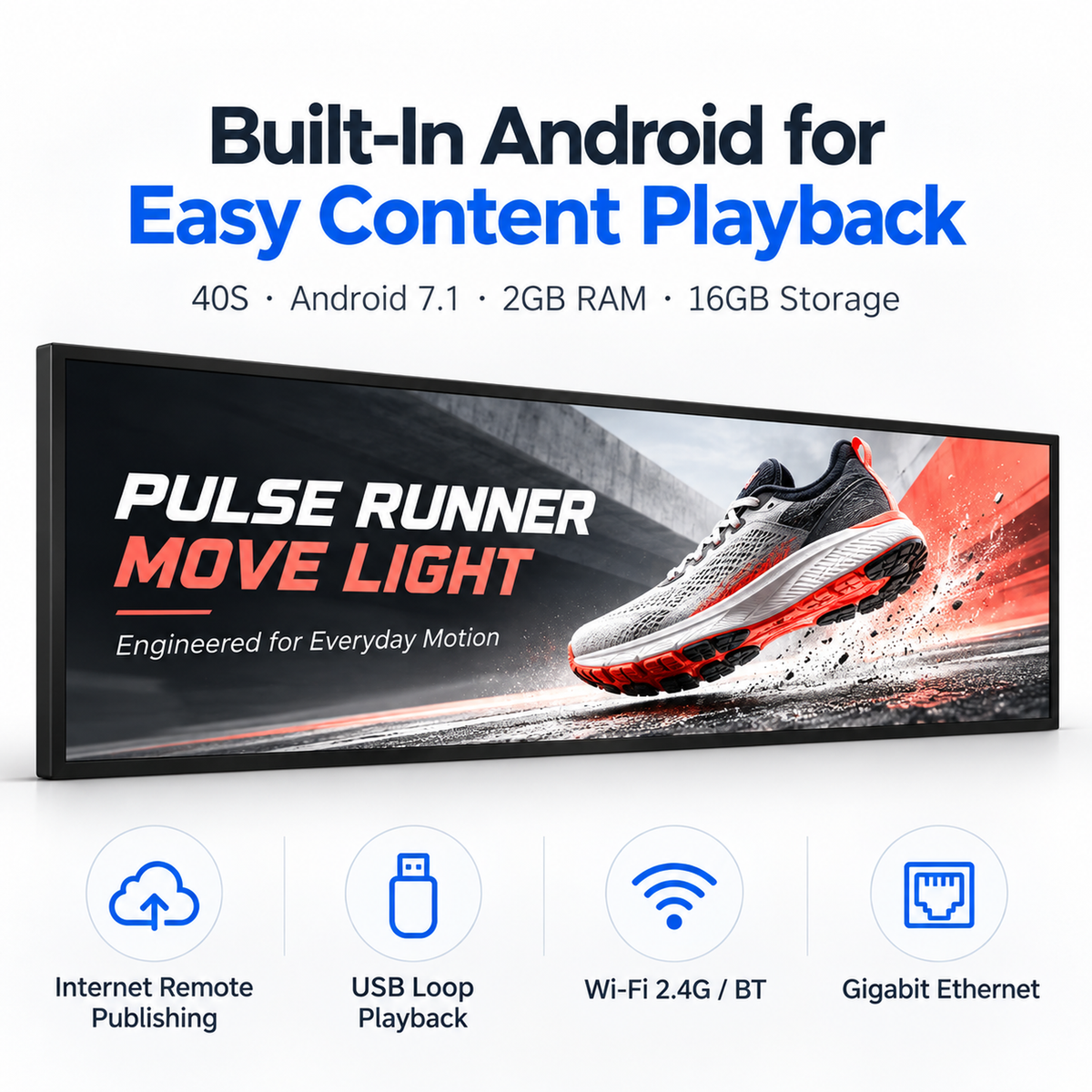

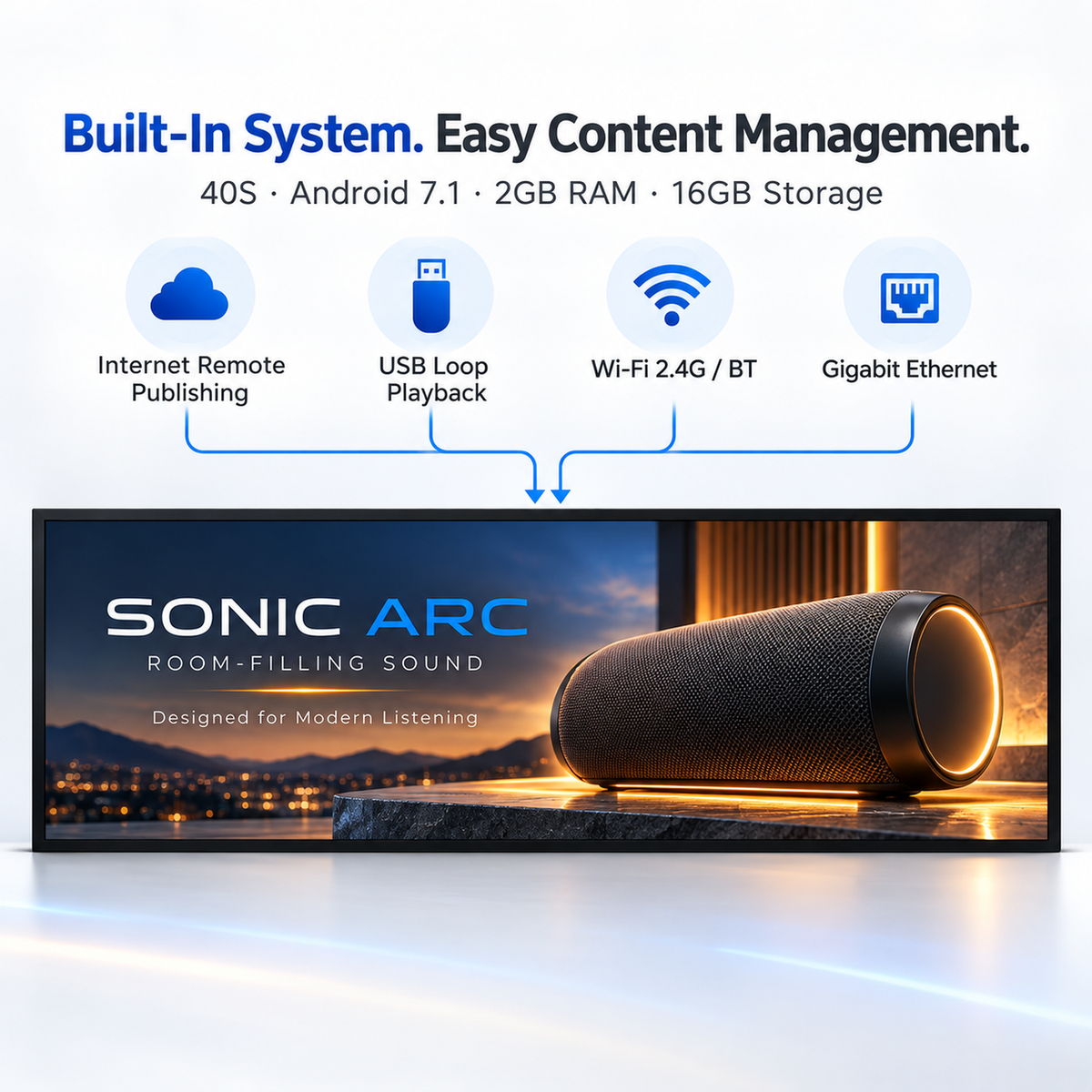

Smart Content Management, Simple Operation
Powered by an Android 7.1 operating system
with 2GB RAM and 16GB internal storage,
the display supports remote content publishing over the internet
as well as standalone USB playback.
Built-in networking capabilities include
Gigabit Ethernet, 2.4GHz Wi-Fi, and Bluetooth,
making it convenient to update advertising content and manage
digital information.
Ultra-Wide Visuals. Flexible Installation. Smarter Digital Signage.
58.4-Inch Ultra-Wide LCD Display – Technical Specifications
| Parameter | Specification |
|---|---|
| Display | |
| Screen Size | 58.4 inches |
| Active Display Area | 1428.5 × 400 mm |

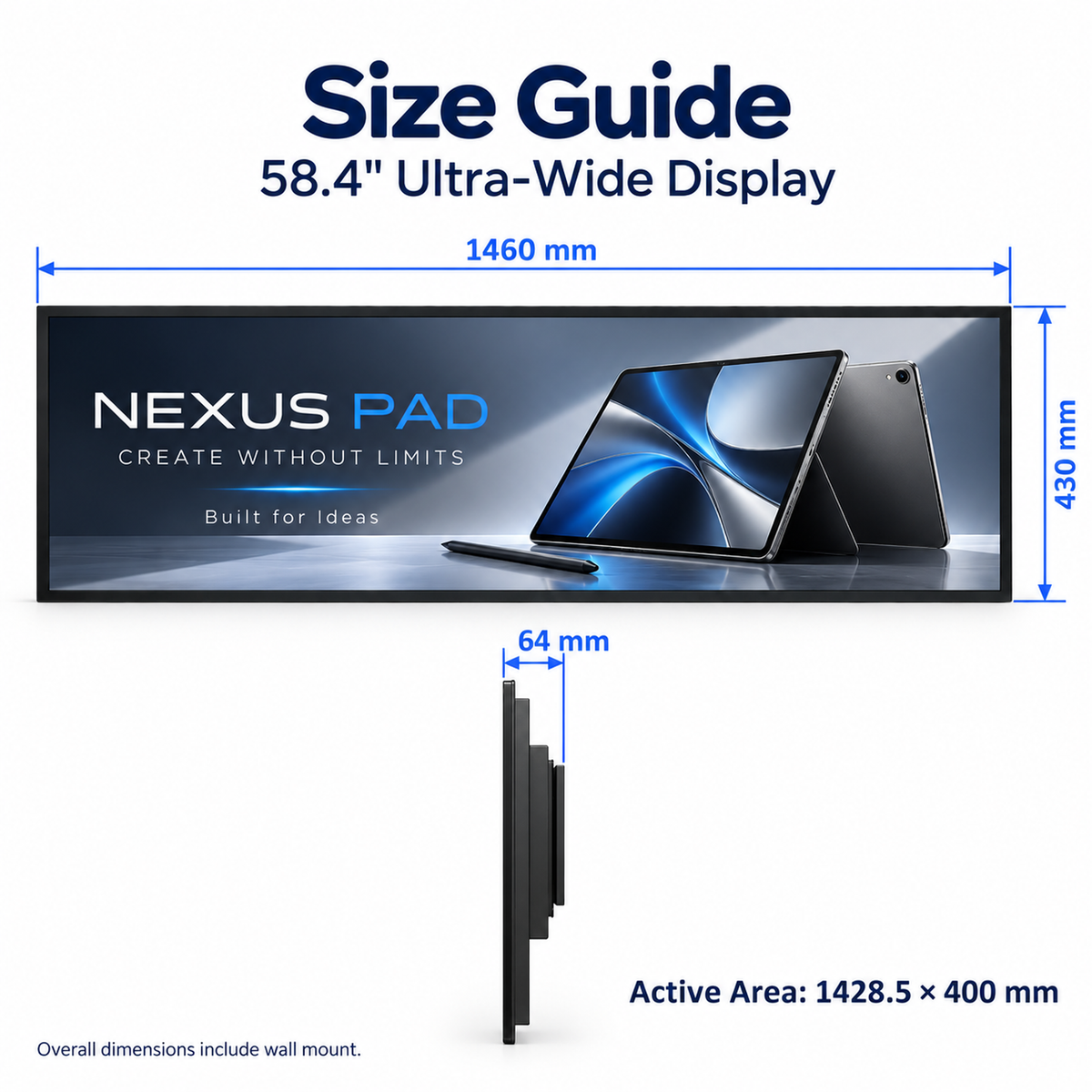

| Overall Dimensions (W × H × D) | 1460 × 430 × 64 mm (Including Wall Mount) |
| Screen Type | 65-Inch Cut LCD Panel |

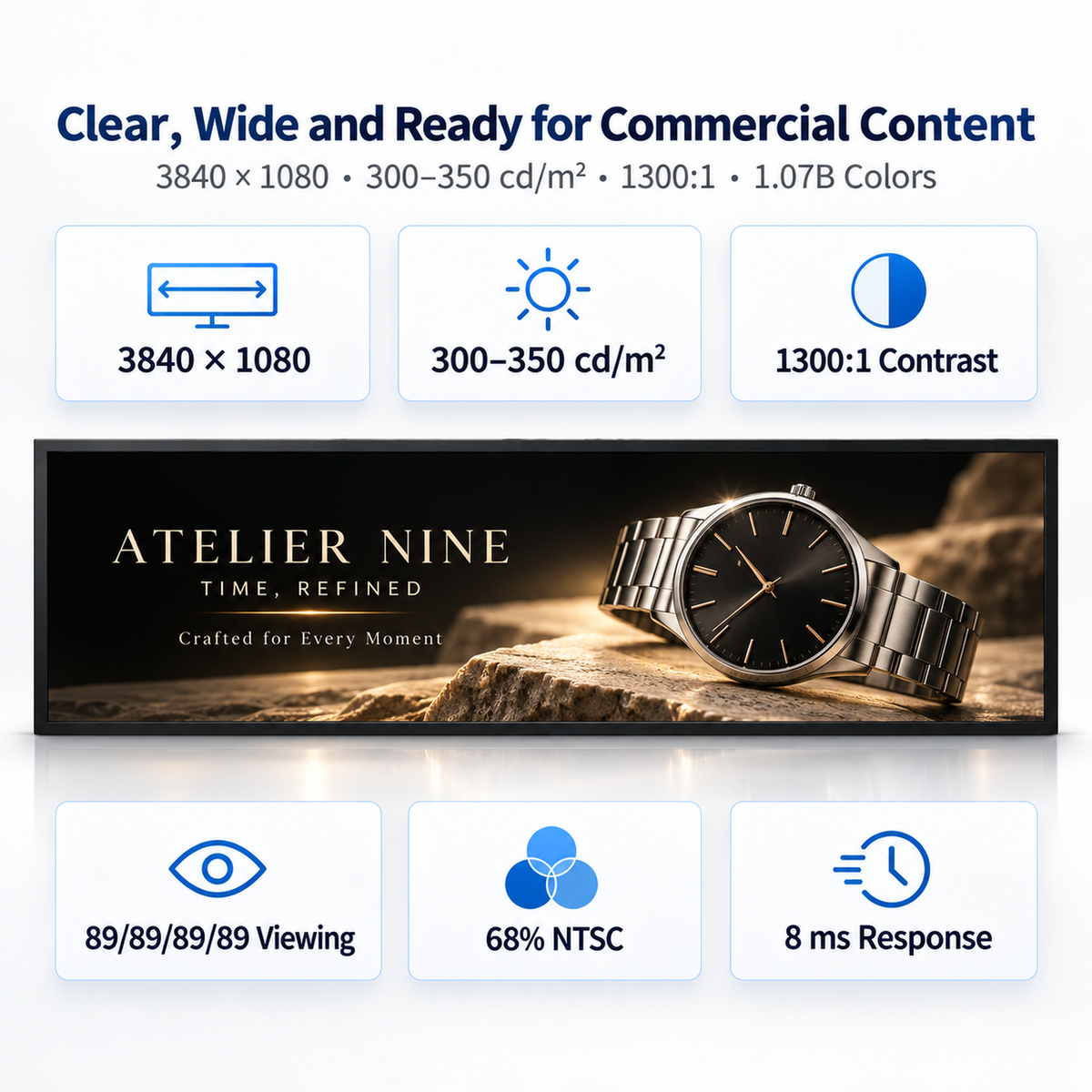

| Display Resolution | 3840 × 1080 Pixels |
| Backlight Type | Edge-Lit LED (E-LED) |
| Brightness | 300–350 cd/m² (Adjustable) |
| Contrast Ratio | 1300:1 |
| Viewing Angle (L/R/U/D) | 89° / 89° / 89° / 89° (Min., CR ≥ 10) |
| Color Depth | 1.07 Billion Colors |
| Color Gamut | 68% NTSC |
| Response Time | 8 ms (Typ., Gray to Gray) |
| Mainboard & Control System | |
| Processor (CPU) | 40S |
| RAM | 2GB |
| Internal Storage | 16GB |
| Operating System | Android 7.1 |
| Content Publishing Method | Internet Remote Publishing / Standalone USB Loop Playback |
| Network Connectivity | Gigabit Ethernet / 2.4GHz Wi-Fi / Bluetooth |
| Wireless Peripheral Expansion | Supported |
| Machine & Installation | |
| Touch Function | Non-Touch |

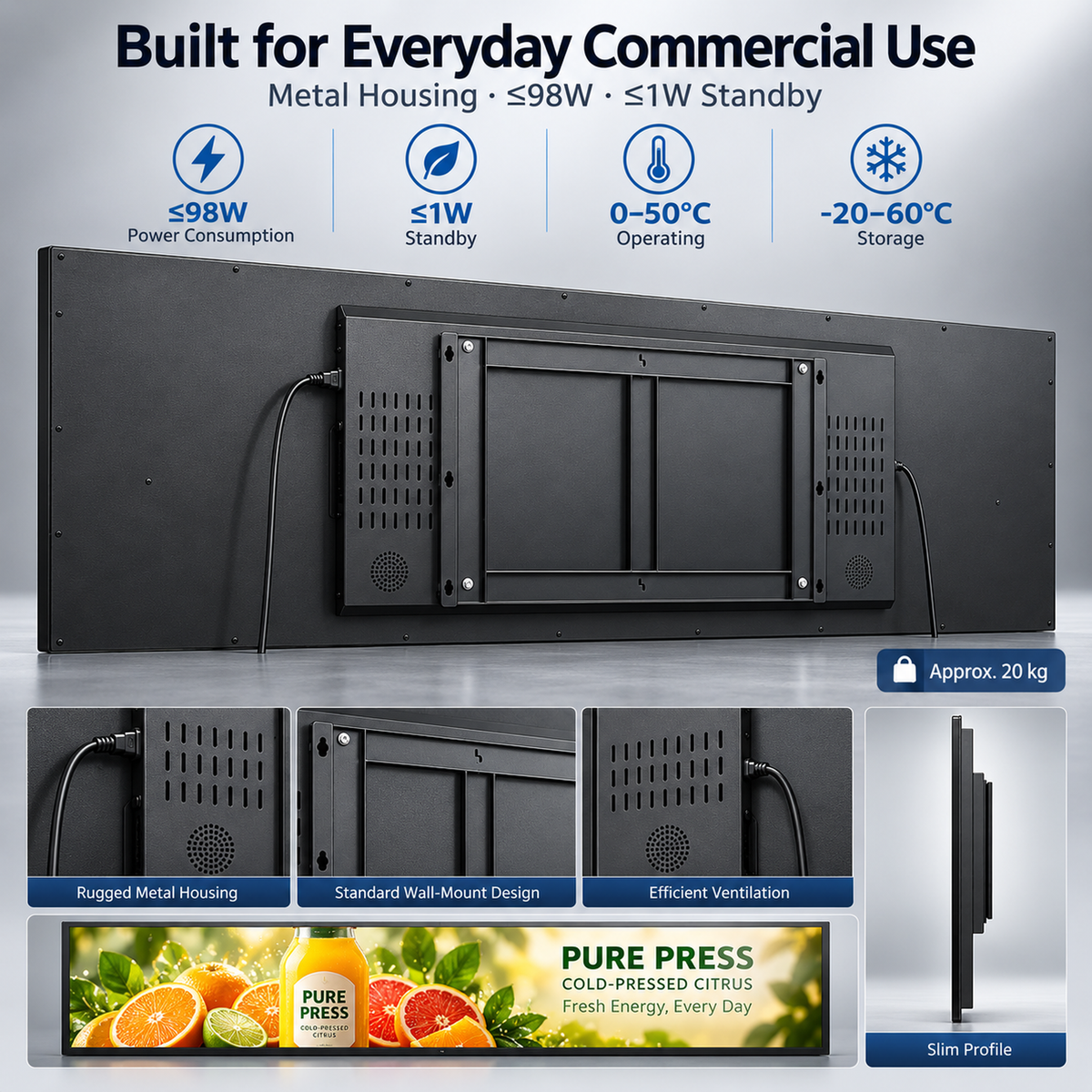

| Frame Material | Sheet Metal Frame |
| Frame Color | Black (Customizable) |
| Power Input | AC 110–240V, 50/60Hz |
| Power Consumption | ≤ 98W |
| Standby Power Consumption | ≤ 1W (Low-Power Standby Supported) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Installation Method | Wall-Mounted (Horizontal / Vertical) |
| Net Weight | Approx. 20 kg |
* The specifications are for reference only. Actual parameters may vary depending on the specific model or contractual agreement.
